Pedestal Column Wrap Tall Raised Panel Pedestal
Product Name
Pedestal Column Wrap | Tall Raised Panel
Description

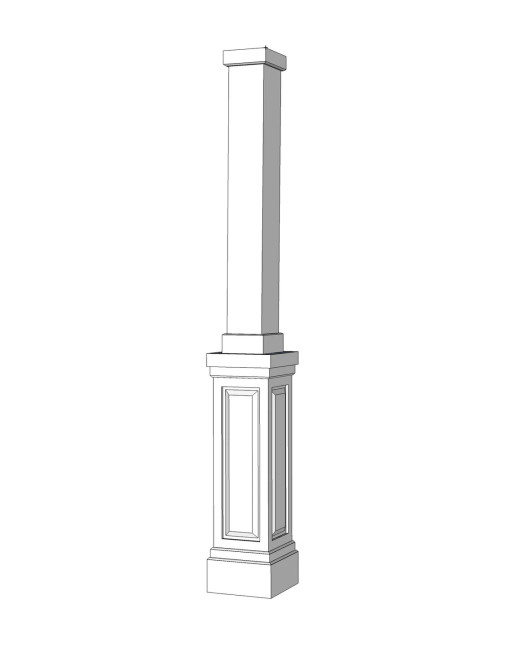

A premium, weather-resistant tall architectural wrap system featuring a 48" Raised Panel Pedestal and a non-tapered shaft. This cellular PVC kit is designed to provide a grand, rot-proof finish for structural posts, utilizing high-strength lock-mitered joints for seamless on-site assembly.
Specifications
-
Structure: Includes a 14" x 48" Raised Panel Pedestal, a choice of 8" or 10" Non-Tapered PVC Column, and a selected Capital/Base set.
-
Sizing Recommendations:
-
8" Shaft: Recommended for project heights of 8ft – 9ft.
-
10" Shaft: Recommended for project heights exceeding 9ft.
-
-
Actual Dimensions:
-
Pedestal: 14" square footprint, 12" shaft width, and 48" height.
-
Internal Clearance: Minimum 6 ¼" opening (with 8" shaft) to wrap 4x4 or 6x6 support posts.
-

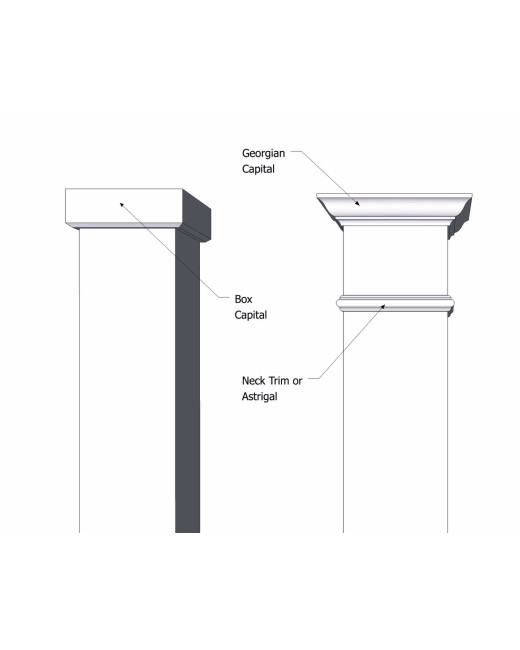

Top Footprints (8" Shaft): 8 ¾" with Box Capital or 12" with Georgian Capital.
-
Top Footprints (10" Shaft): 11" with Box Capital or 14 ⅛" with Georgian Capital.
-
-

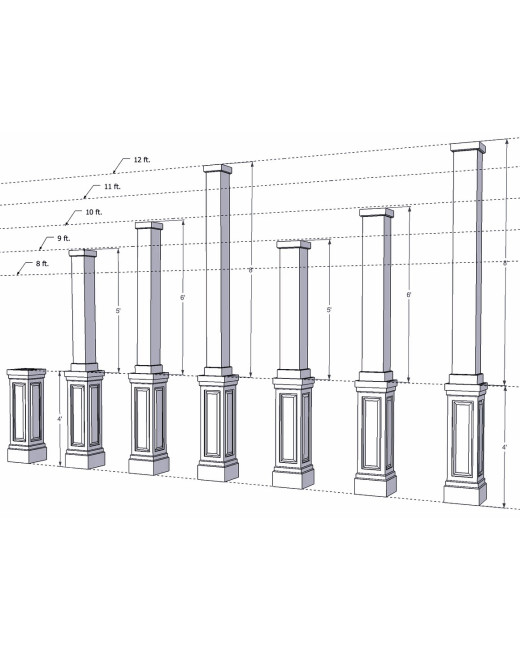

Total Height Combinations:
-
5ft Shaft + 48" Pedestal: 9ft total height.
-
6ft Shaft + 48" Pedestal: 10ft total height.
-
8ft Shaft + 48" Pedestal: 12ft total height.
-
-
Installation: Components can be cut to size on-site with standard woodworking tools; includes 3 oz PVC adhesive, tape, mounting hardware, installation cleats, and instructions.
* Please note: dimensions may vary by +/- 1/16" due to ongoing product improvements and sizing standardization.
